Cloud Printer (Star Micronics)
There are two methods available for connecting a Star Micronics Cloud Printer to your store. Both methods achieve the same result, so you can choose the one that best suits your setup and device availability.
Method 1: Configure Using the Star Quick Setup Utility (Recommended)
This is the recommended approach for configuring your Star Micronics printer.
Prerequisites
Before you begin, ensure that:
- The printer is connected to your network using an Ethernet cable.
- Your iPhone and the printer are connected to the same network.
- The Star Quick Setup Utility app is installed from the App Store/Play Store

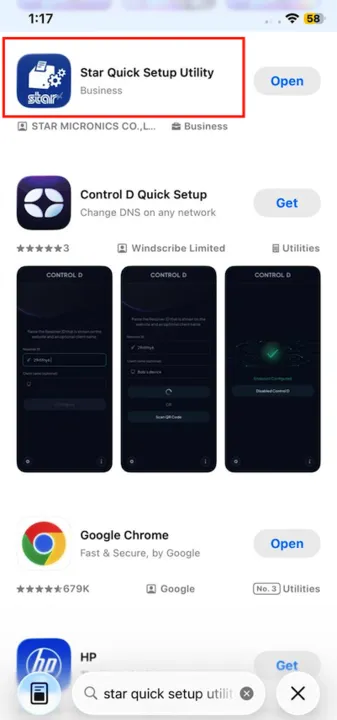

Step 1: Install the Star Quick Setup Utility
Download and install the Star Quick Setup Utility from the Apple App Store.

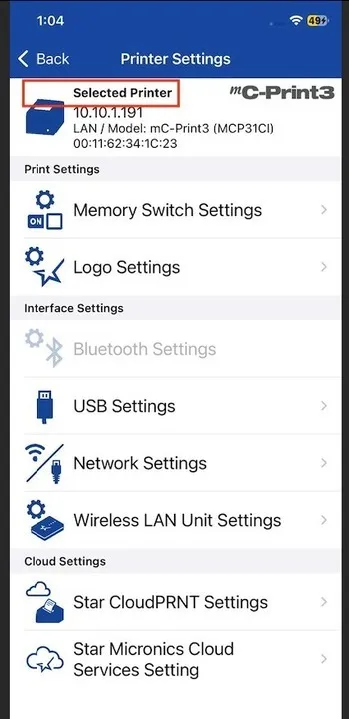

Step 2: Connect to Your Printer
- Open the Star Quick Setup Utility app.
- Select your printer from the available devices.
- Allow all requested permissions.
- Once connected, the app will display your printer's Ethernet IP Address.

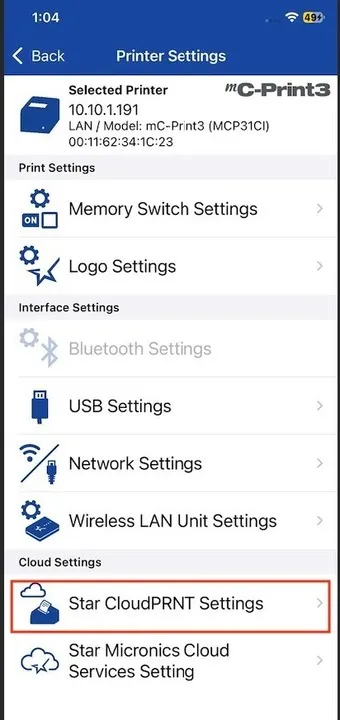

Step 3: Open CloudPRNT Settings
Navigate to: Printer Settings > Star CloudPRNT Settings

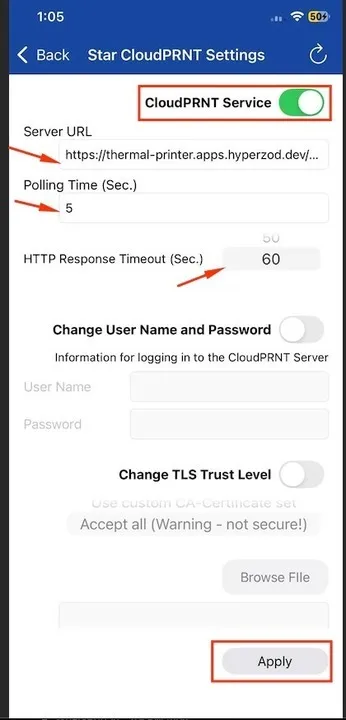

Step 4: Configure the CloudPRNT Settings
Enter the following values:
- Enable the CloudPRNT Service toggle.
- Server URL: Paste your CloudPRNT Server URL.
- Polling Time: 5 Seconds
- HTTP Response Timeout: 60 Seconds

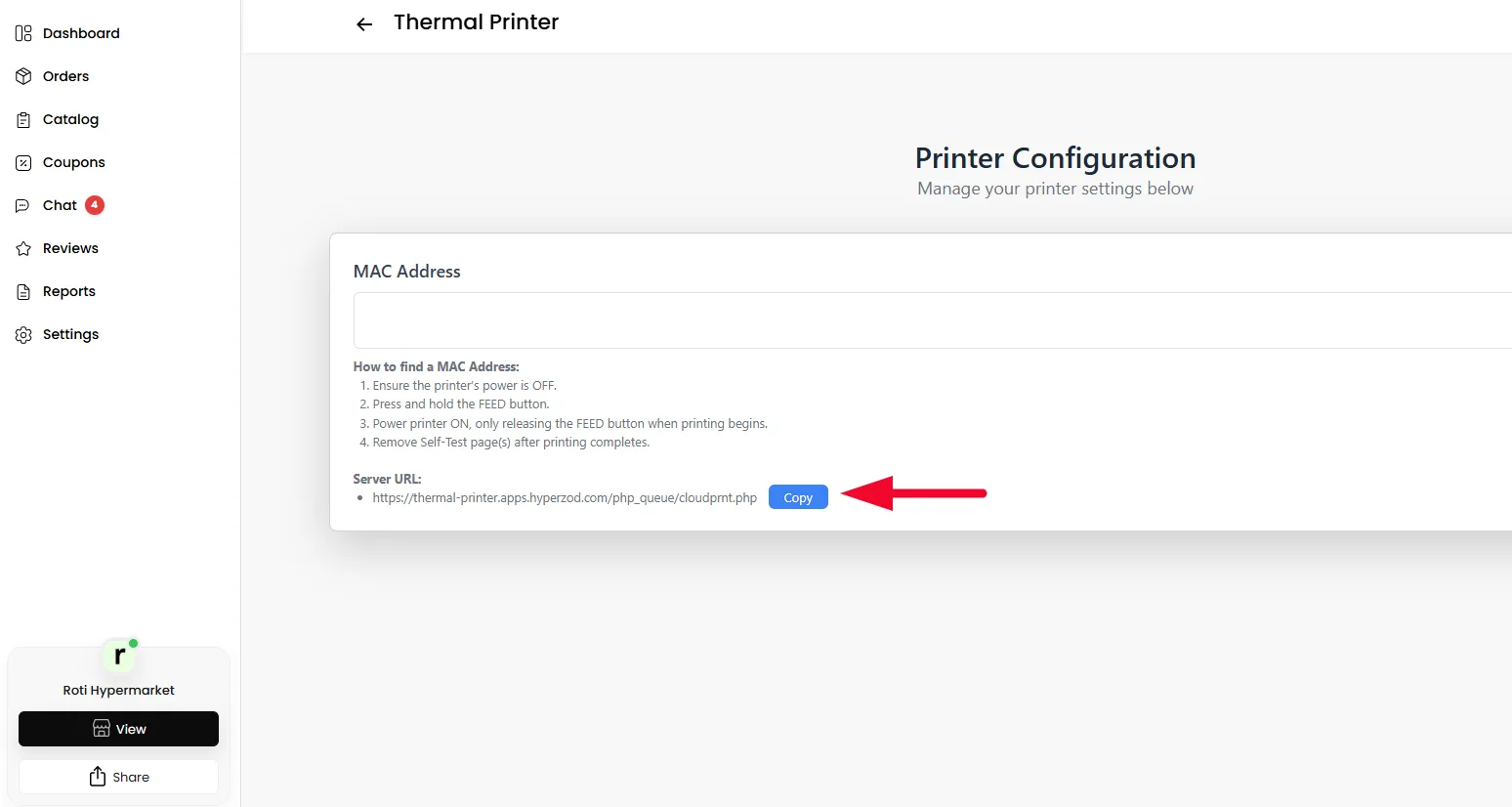

Step 5: Obtain the Server URL
To copy your CloudPRNT Server URL:
- Open the Merchant Panel.
- Navigate to: Settings > Apps > Thermal Printer
- Enable the Cloud Printer option.
- Click the Settings icon.
- Copy the generated Server URL.
- Paste this URL into the Star Quick Setup Utility.
Step 6: Save the Configuration
Save the settings within the app.
Your printer is now ready to receive CloudPRNT print requests.
Method 2: Configure Through the Printer Web Interface
If you prefer not to use the mobile application, you can configure the printer directly using its web interface.
Step 1: Install the Printer Driver
- Identify Your Printer Model: Ensure you have the correct driver for your specific printer model.
- Download the Driver: Visit the Star Micronics Support Page to download the necessary driver for your device.
- Install the Driver: Follow the on-screen instructions to complete the installation.
Step 2: Connect Your Printer to the Network
- Network Setup: Connect both your computer and the printer to the same network.

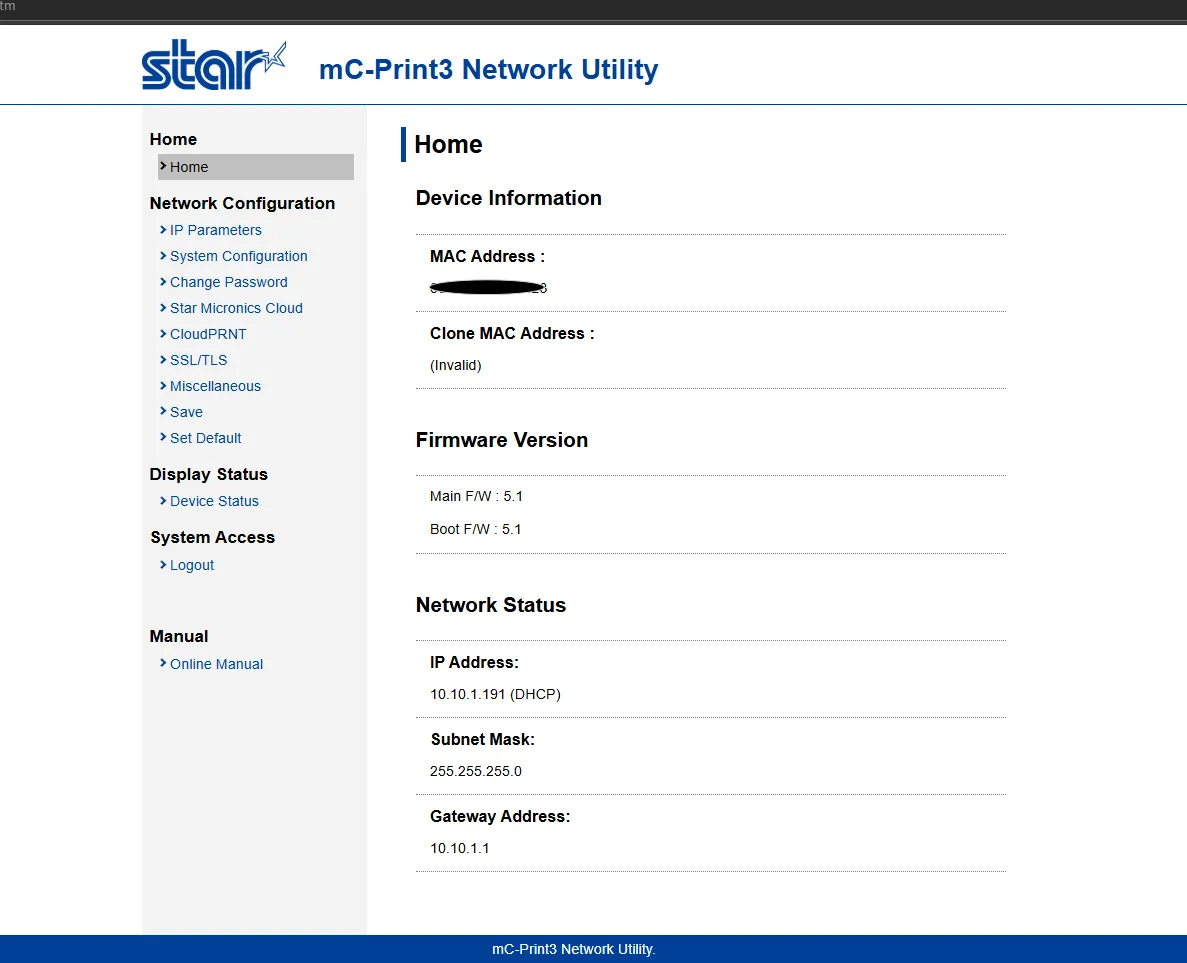

- Find the Printer's MAC Address: Once connected, obtain the printer's MAC address as shown in the image below.
Step 3: Register Hyperzod Cloud Printer Server URL

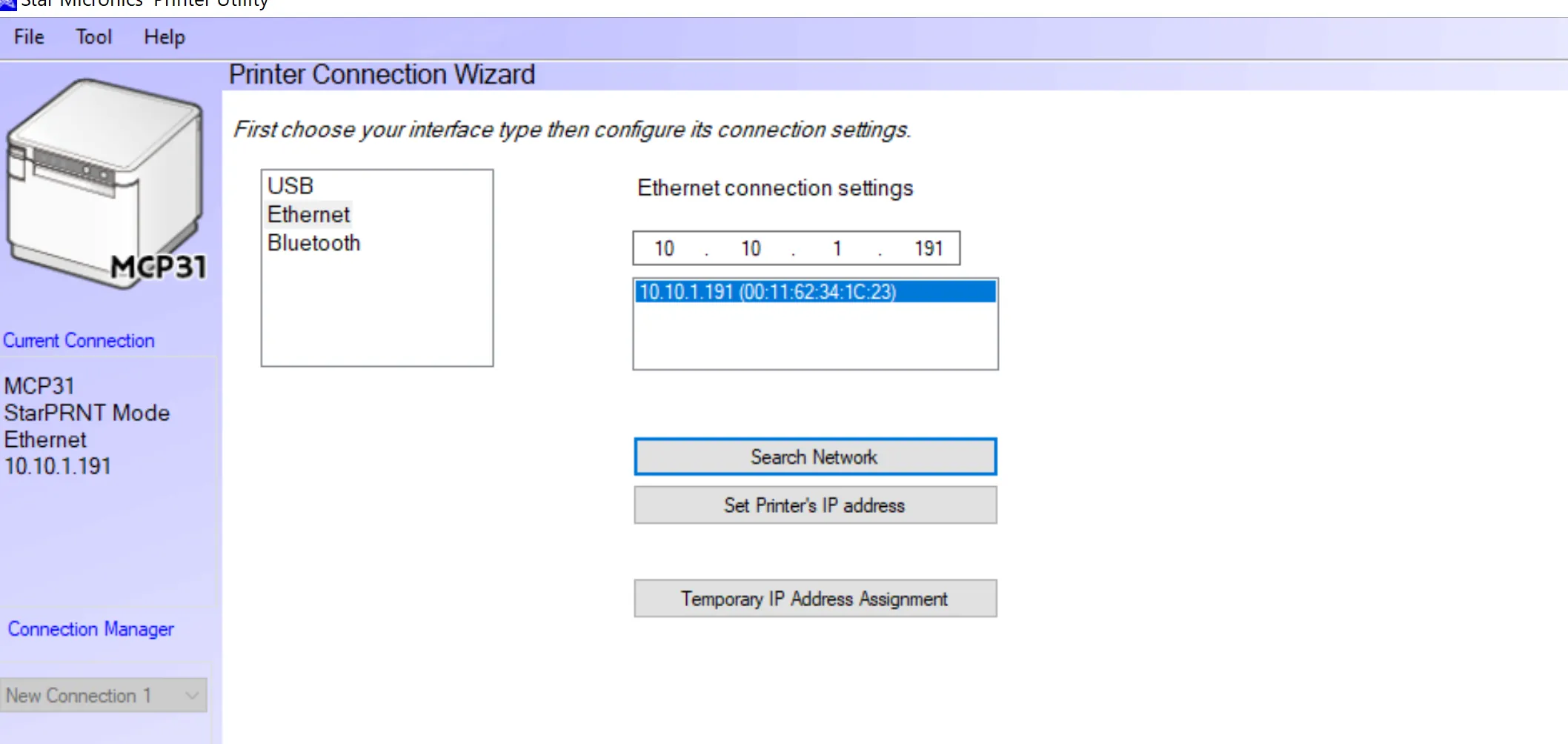

- Set Printer IP Address: Click on the "Set Printer IP Address" button to configure your printer settings.
- Login Credentials: Use the default credentials to log in:
- Username: root
- Password: public

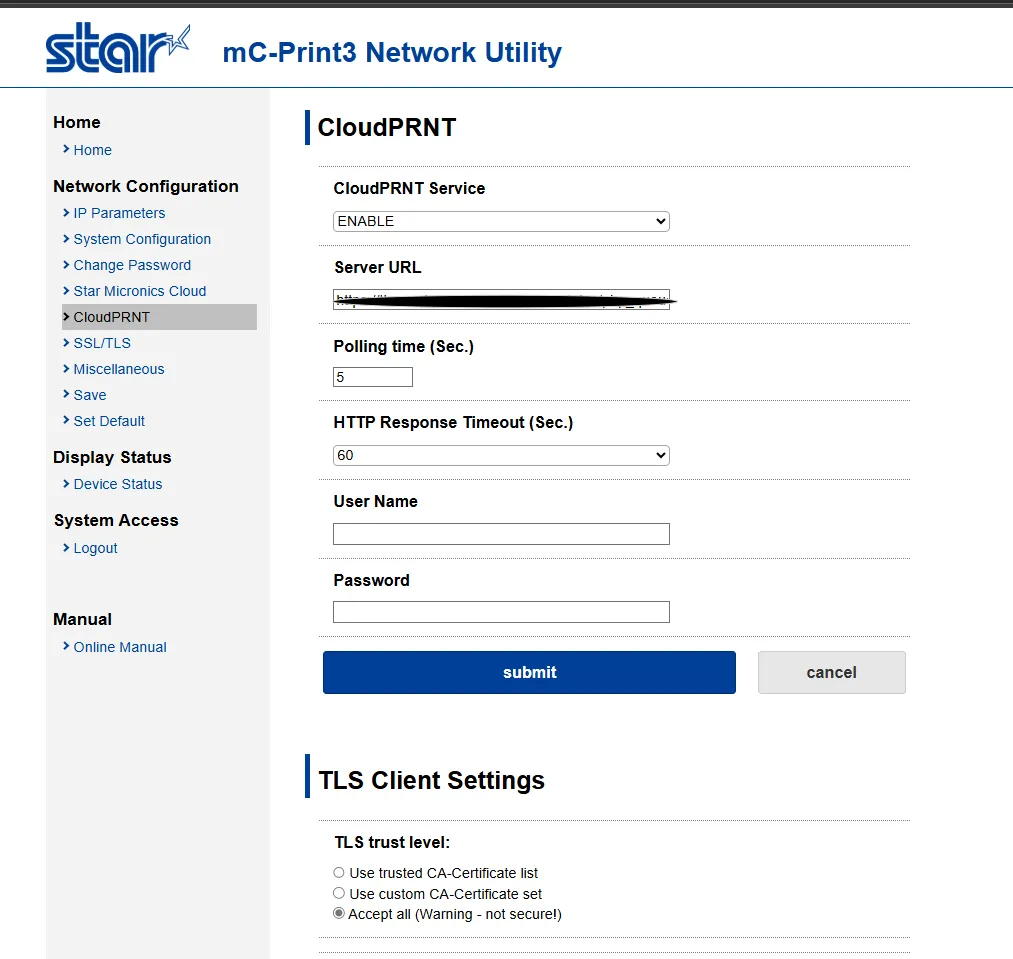

Register Hyperzod Cloud Printer Server: Click on the "CloudPRNT" button to set up the server URL. This button is visible in the image below.
You can find the server URL
Go to merchant panel -> Apps -> Thermal Printer -> Star Micronics -> Click on setting icon -> copy server URL
Step 4: Enable CloudPRNT Service
- Enable CloudPRNT: Make sure the CloudPRNT Service is enabled as shown in the image below.
Save and Submit:
Click "Submit" to save the settings. Your cloud printer is now ready to use.
Note: If you have any issues installing the driver, please connect star micronic support team-https://starmicronics.com/star-micronics-technical-support
