Square POS Integration

Admin Panel



STEP 1: Create a new App on the Square Developer Portal

https://developer.squareup.com/console/en/apps

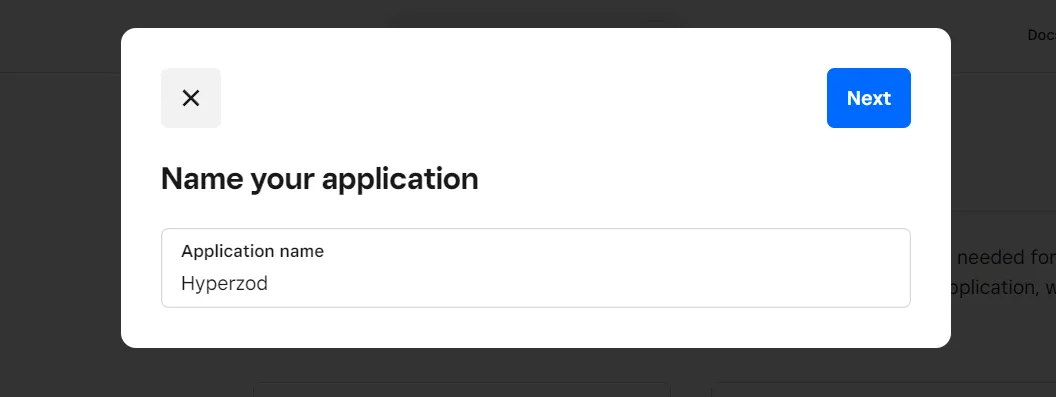

Create New App
Create New App

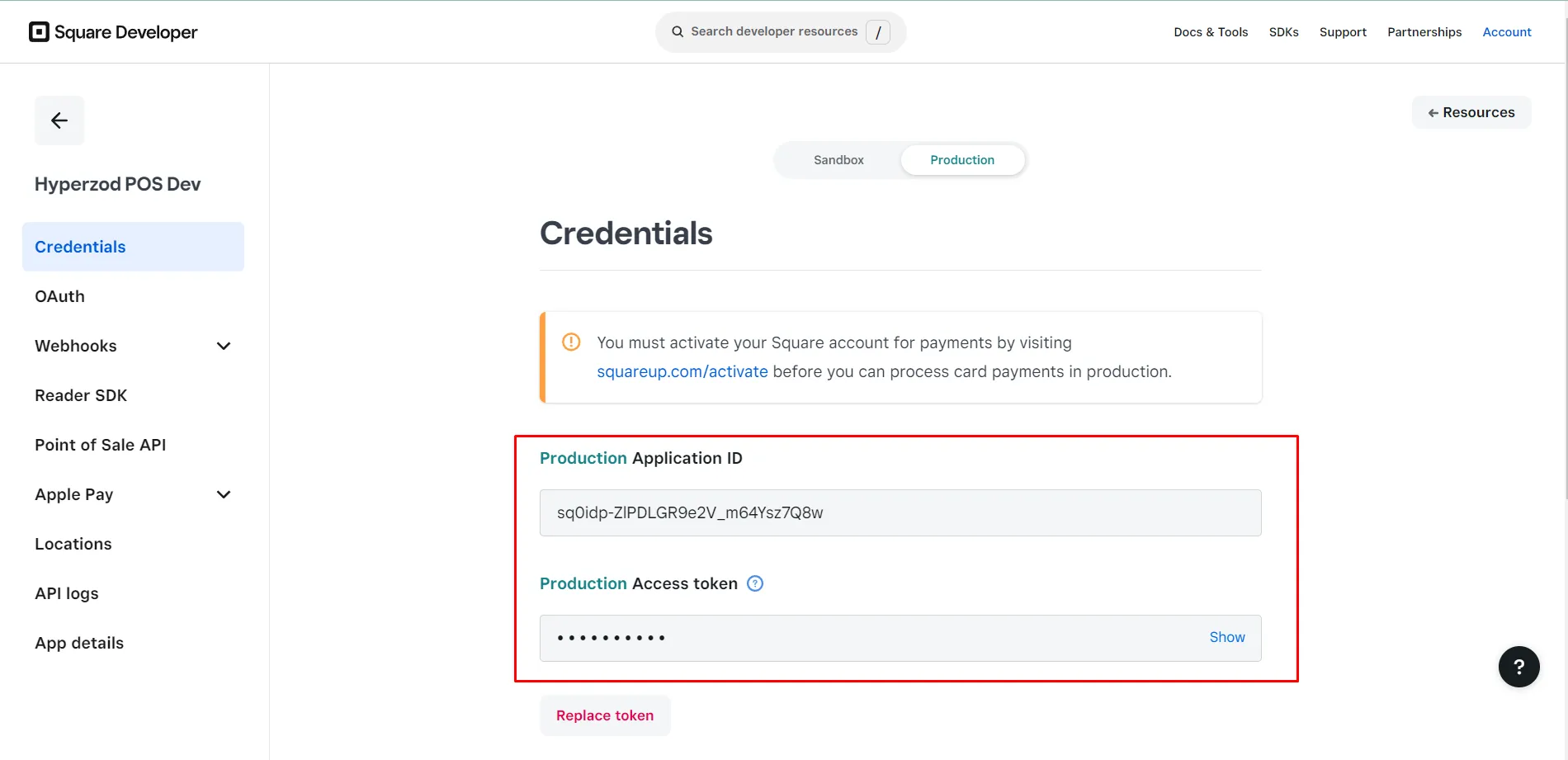

STEP 2: Copy App Credentials

Document image

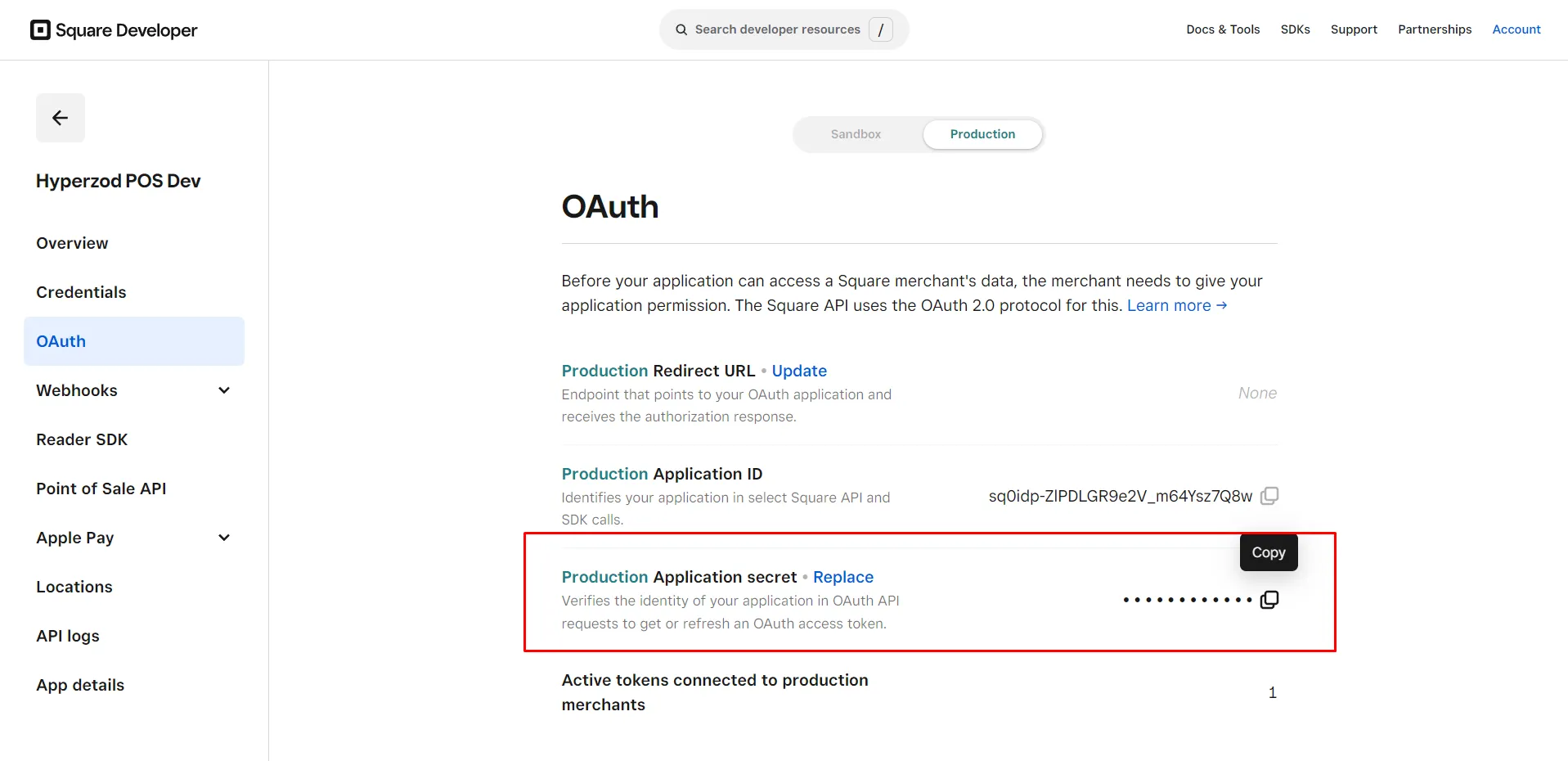

STEP 3: Copy OAuth Application Secret

Document image

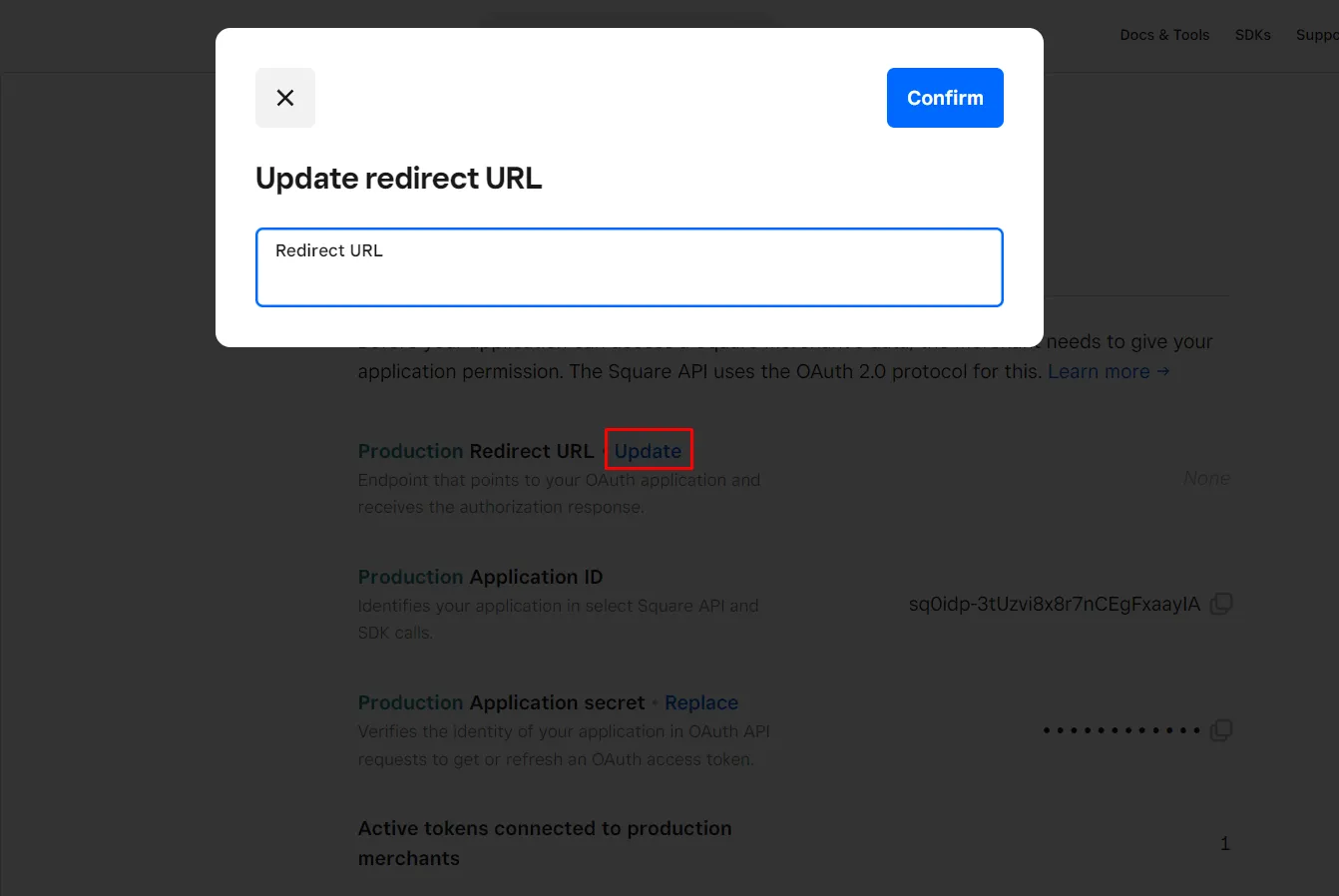

STEP 4: Configure OAuth Redirect URL

Redirect URL: https://pos-sync.apps.hyperzod.com/merchant/callback/oauth/square_pos

Document image

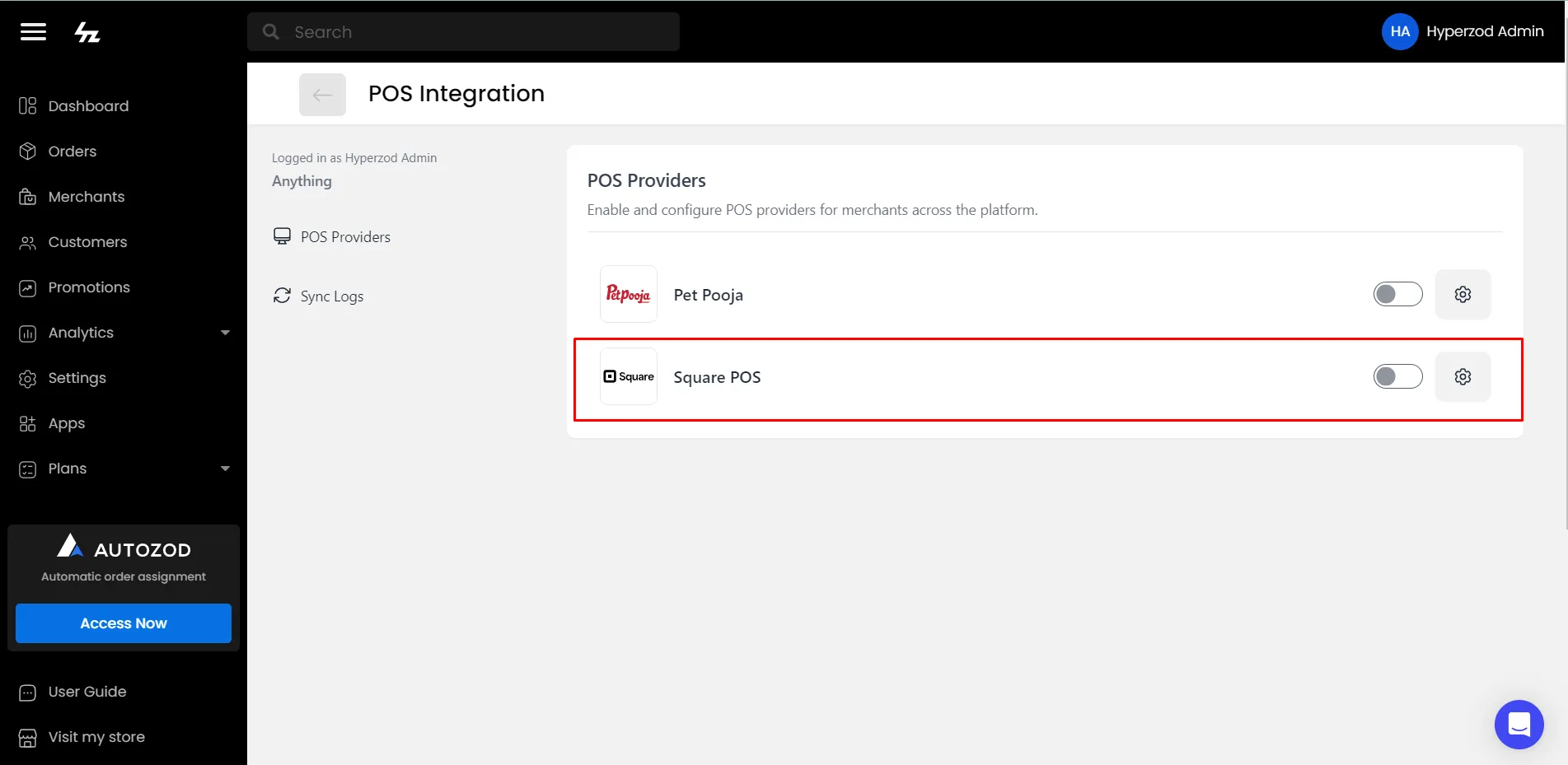

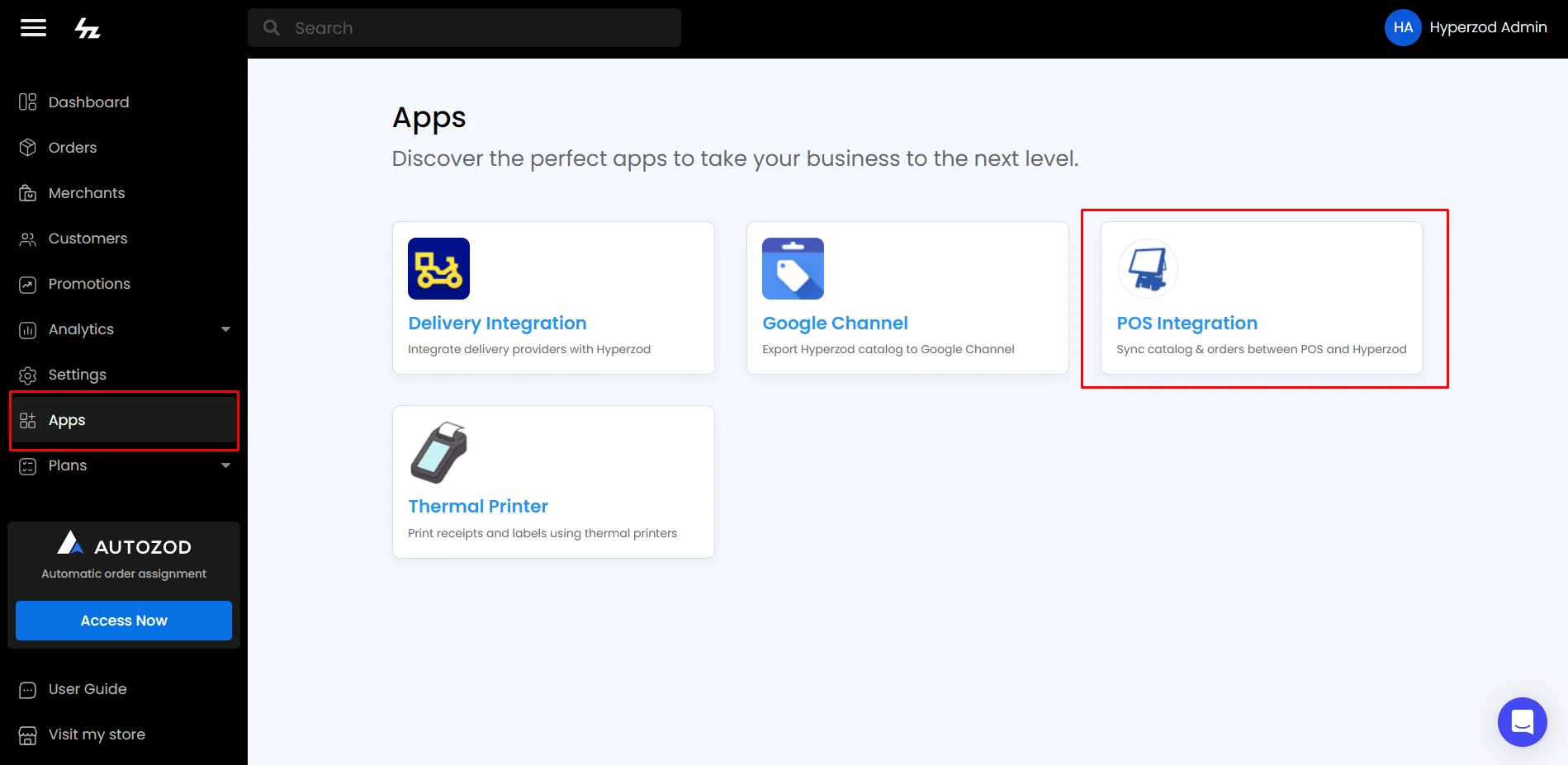

STEP 5: Configure Square POS in Hyperzod Apps

Document image

Document image

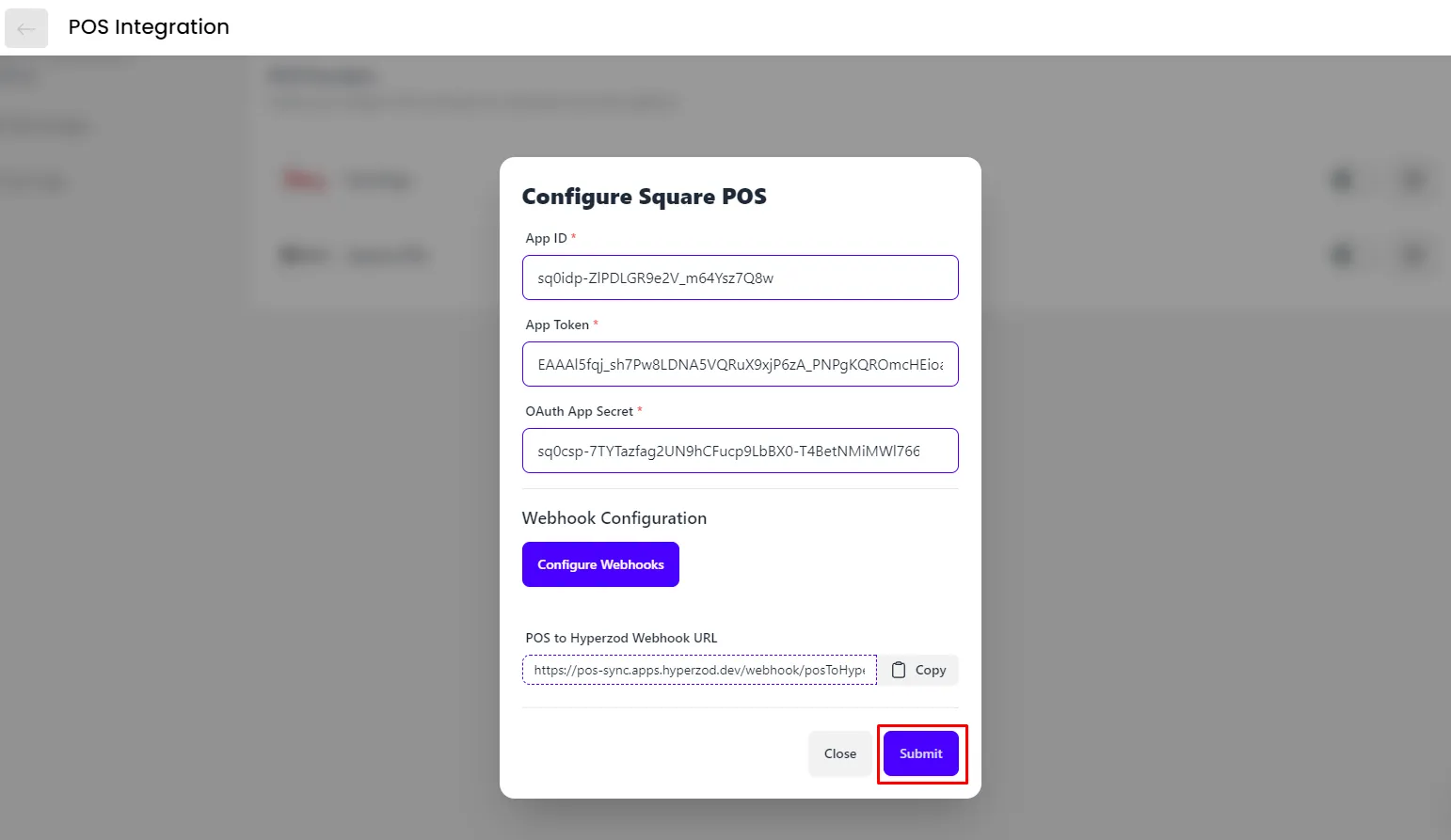

Copy the following into Square config and Save

  • Application ID
  • Access token
  • OAuth Application Secret
Document image




STEP 6: Configure Webhooks

After saving the square configurations, reopen the config and click Configure Webhooks. This will automatically configure the webhooks on Square POS and Hyperzod.

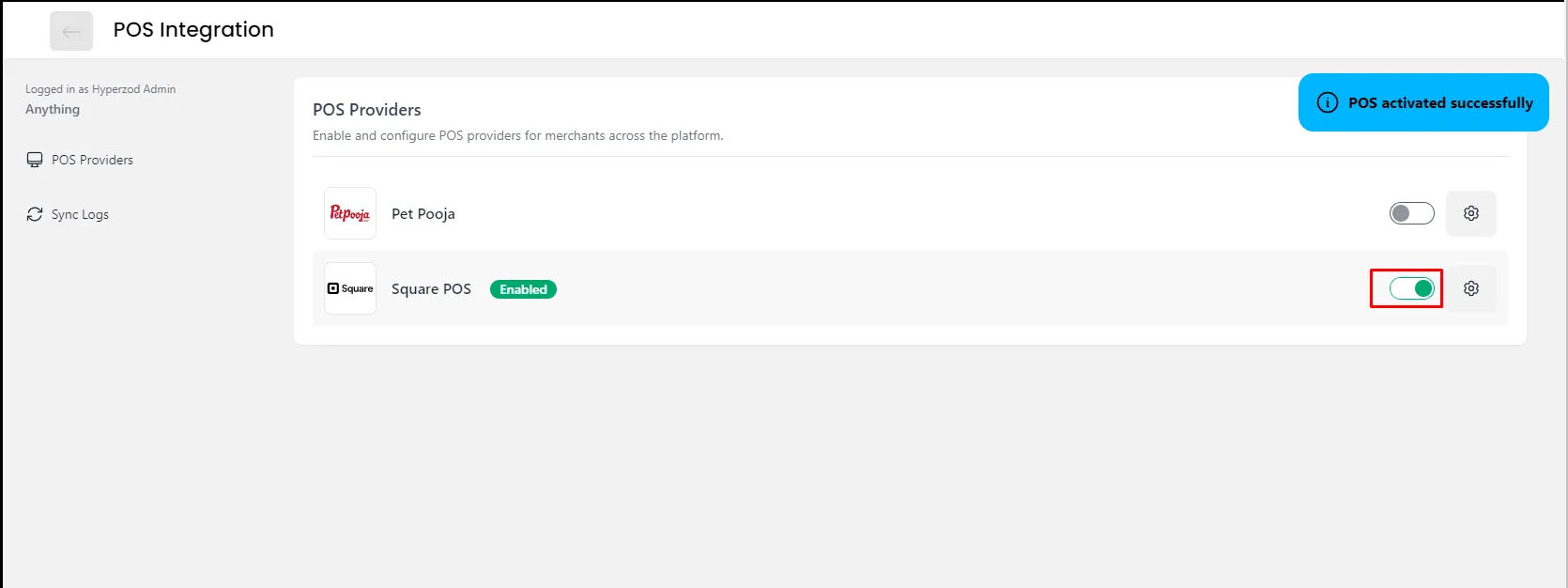

STEP 7: Activate Square POS for Merchants

Document image



Merchant Panel



STEP 1: Authorize Square Merchant Account

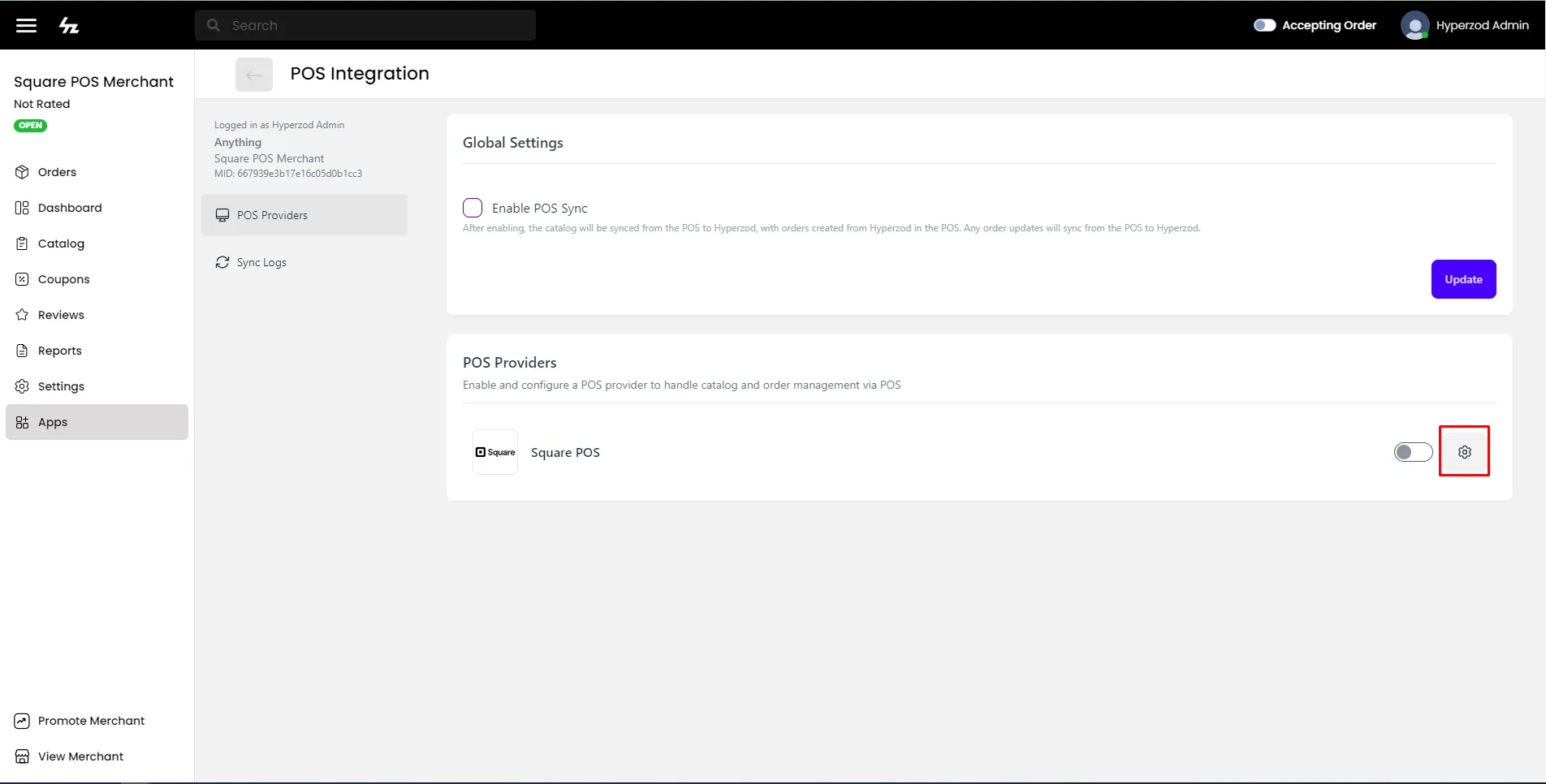

Goto Apps > POS Integrations in the merchant panel and click Configure Square POS. If the admin has enabled it, Square POS will appear in the

Document image

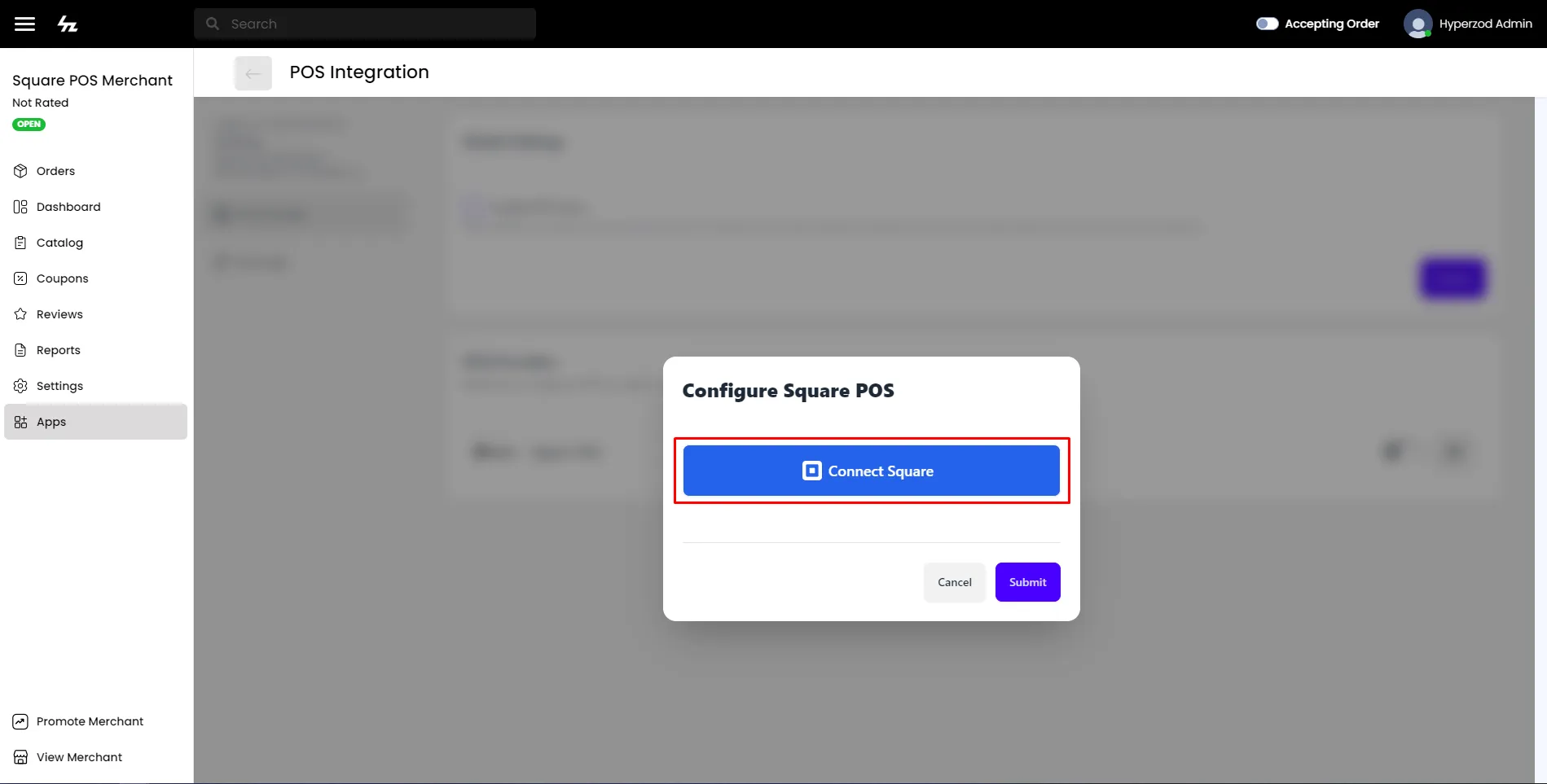

Click Connect Square button to authorize your Square Merchant account.

Document image

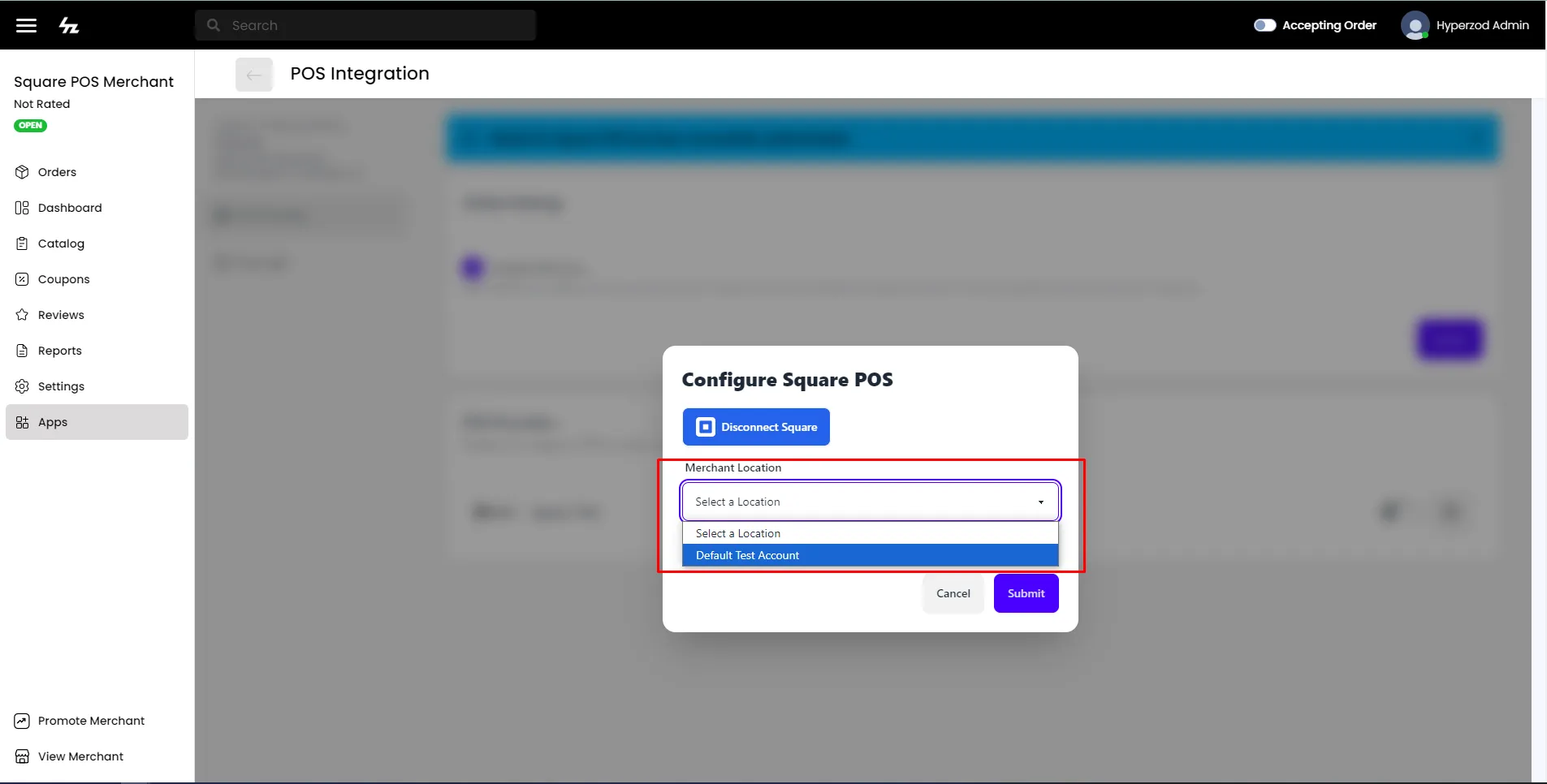

STEP 2: Select Square Merchant Location

Once authorized, click Configure button again to select the Square Merchant Location.

Document image

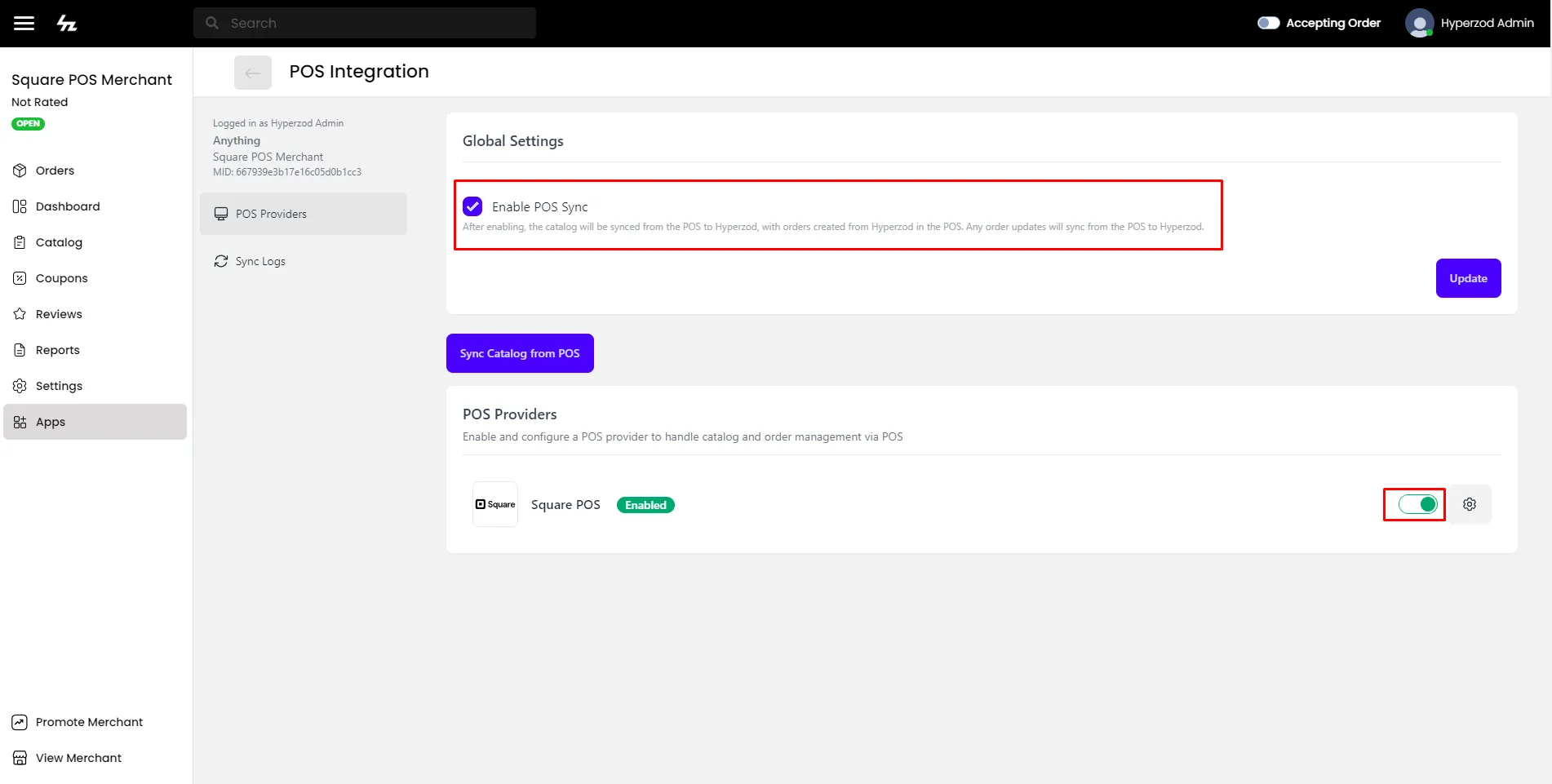

STEP 3: Activate

Finally, activate the Square POS and Enable POS Sync option from Global Settings.

Document image
